Inverse Perspective Mapping of Images Without OpenCV

Introduction

With the development of autonomous driving technology, more and more people are being exposed to newer technologies, and are increasingly curious about how the computer world actually achieves autonomous driving. They are also curious about how some of the features that come with autonomous driving systems are implemented. This time, we will explain and practice the algorithm logic behind the "360° reversing camera" in the system.

Inverse Perspective Mapping

When capturing the image, the vehicle calls multiple cameras and stitches them into a "360° panoramic photo".

To form the top-down view of the "360° reversing camera", a mathematical operation is required, which is Inverse Perspective Mapping, or IPM for short.

In this field, there are many IPM transformation methods, such as the "corresponding point homography transformation method" and the "simplified camera model inverse perspective transformation", but they all use matrix transformation rules.

Corresponding Point Homography Transformation Method

This transformation method is relatively simple, so we won't describe it in too much detail.

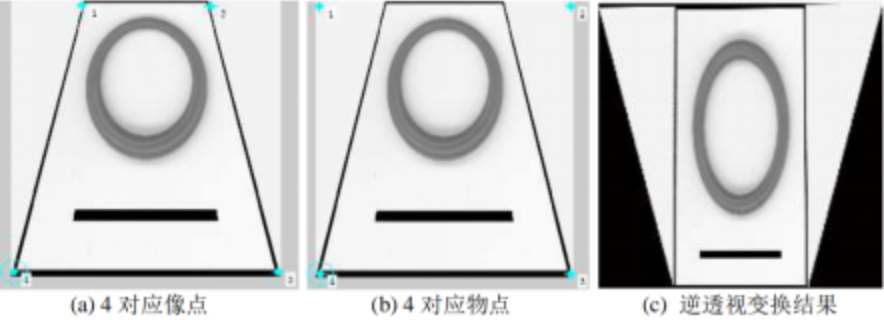

Input at least four corresponding point pairs, with no three or more points being collinear. No information about the camera parameters or the plane position is needed. Using the point pairs, solve for the perspective transformation matrix, where the matrix is a third-order square matrix, so a linear equation can be constructed to solve it. If there are more than four points, the $ransac$ method can be used to solve it, and the point selection method is usually manual, typically by selecting vanishing points.

\begin{bmatrix} t_i x'_i \\ t_i y'_i \\ t_i \end{bmatrix} = map\_matrix \cdot \begin{bmatrix} x_i \\ y_i \\ 1 \end{bmatrix}

dst(i) = (x'_i, y'_i), src(i) = (x_i, y_i), i = 0, 1, 2, 3

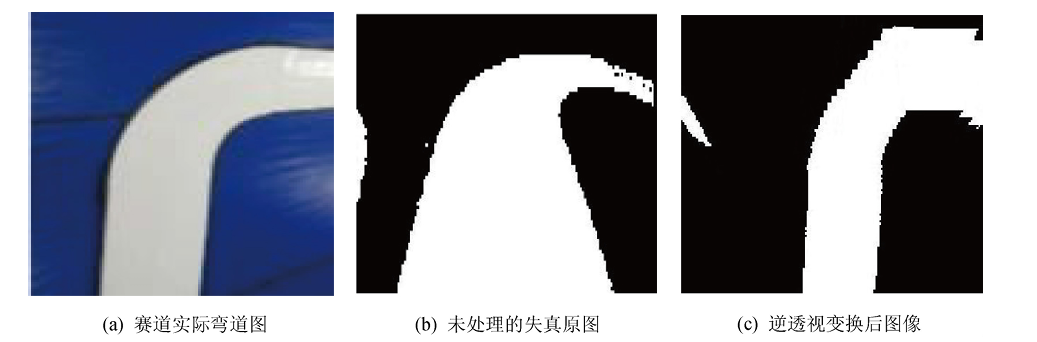

This transformation is relatively simple to implement in code, and the IPM transformation can be implemented relatively easily. We won't go into too much detail here, and we won't provide a code example either.

Simplified Camera Model IPM Method

This is the transformation method we will focus on this time. The essence of this algorithm is to use the conversion relationships between various coordinates during the camera imaging process, then abstract and simplify it, finally obtaining the world coordinates.

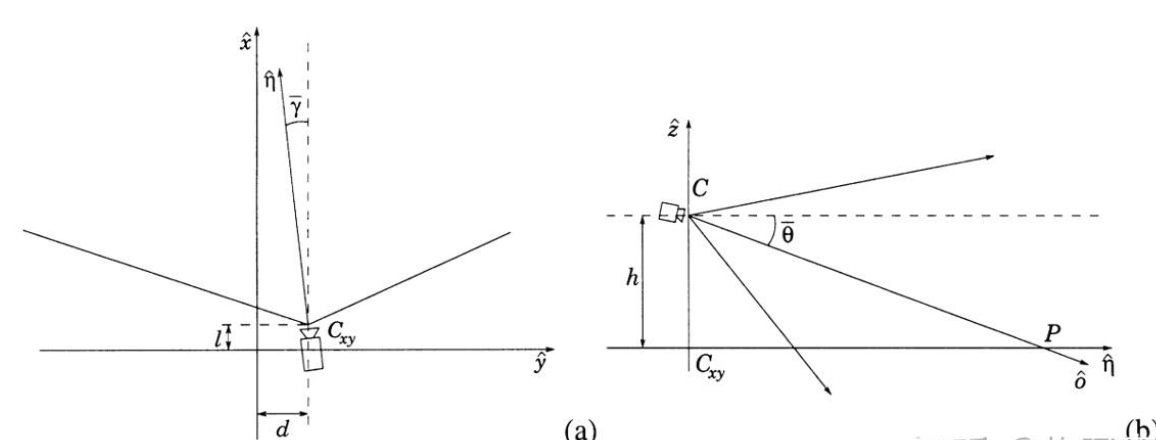

Then, establish the correspondence between world coordinates and image coordinates, and use this relationship to perform the mathematical transformation.

Unlike some complex and lengthy calculation formulas, we still use coordinate operations here. For this IPM calculation method, we need to first measure the actual camera parameters.

Here, the elevation angle $θ$ is $23°$ , the center height $H$ is $37 cm$ , and the distance from the viewpoint to the view plane $d$ is $87 cm$ . Then, we find the world coordinate $P_W$ .

Assume the camera image coordinate is $\boldsymbol{P_G} = (x, y, z, 1)$ , and establish the matrix equation based on the relationship between world coordinates and image coordinates,

\boldsymbol{P_G} = \boldsymbol{P_W} \begin{bmatrix} 1 & 0 & 0 & 0 \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 0 & -H & 1 \end{bmatrix} \begin{bmatrix} \cos\theta & 0 & -\sin\theta & 0 \\ 0 & 1 & 0 & 0 \\ \sin\theta & 0 & \cos\theta & 0 \\ 0 & 0 & 0 & 1 \end{bmatrix} \cdot \begin{bmatrix} 1 & 0 & 0 & \frac{1}{d} \\ 0 & 1 & 0 & 0 \\ 0 & 0 & 1 & 0 \\ 0 & 0 & 0 & 1 \end{bmatrix}. \tag{1}

Substitute the image coordinates into equation $(1)$ to find the matrix of world coordinates, i.e.,

\boldsymbol{P_W} = \left[ \frac{x\cos\theta - z\sin\theta}{1 - \frac{x}{d}} \quad \frac{y}{1 - \frac{x}{d}} \quad \frac{x\sin\theta + z\cos\theta - \frac{H}{d}}{1 - \frac{x}{d}} \quad 1 \right]. \tag{2}

Let $A = H\cos\theta$ , $B = -d$ , $C = d\sin\theta - \frac{H}{d}$ , $D = \cos\theta$ , and $E = d\sin\theta$ . From the geometric relationship, we know that $x\sin\theta + z\cos\theta - \frac{H}{d} = 0$ . The simplest form of $\boldsymbol{P_W}$ is

\boldsymbol{P_W} = \left[ \frac{A + Bz}{C + Dz} \quad \frac{Ey}{C + Dz} \quad 0 \quad 1 \right]. \tag{3}

Finally, process the image. Since the image being processed is a two-dimensional plane image, the image depth is always 0. According to $(3)$ , we only need to substitute the horizontal and vertical coordinates of the array to obtain the coordinate values in world coordinates, which is the top-down view after IPM.

CPP

#include <cmath>
#include <cstdint>
#include <vector>
#include <algorithm>

namespace ipm
{
    // =========================
    // Basic data structures
    // =========================

    struct Vec3
    {
        double x;
        double y;
        double z;
    };

    struct GroundPoint
    {
        double X;     // World coordinate X (left/right)
        double Y;     // World coordinate Y (front/back)
        bool valid;   // Whether there is a valid intersection with the ground
    };

    struct CameraParam
    {
        // Focal length (in pixels)
        // If you only have a d, you can set fx = fy = d
        double fx;
        double fy;

        // Principal point (usually the image center)
        double cx;
        double cy;

        // Camera height above ground, e.g., in cm
        double H;

        // Camera downward pitch angle (radians)
        double pitch;
    };

    struct IPMParam
    {
        // Output bird's-eye view size
        int outWidth;
        int outHeight;

        // World coordinate range (same unit as H, e.g., cm)
        // X: left/right range
        // Y: front/back range
        double minX;
        double maxX;
        double minY;
        double maxY;
    };

    // =========================
    // Utility functions
    // =========================

    inline double clampDouble(double v, double lo, double hi)
    {
        return (v < lo) ? lo : ((v > hi) ? hi : v);
    }

    inline uint8_t clampToByte(double v)
    {
        if (v < 0.0) return 0;
        if (v > 255.0) return 255;
        return static_cast<uint8_t>(v + 0.5);
    }

    // Rotation around the X axis: convert the direction in the camera coordinate system to the world coordinate system
    // Here we assume:
    // - The world Z axis is upward
    // - The camera optical axis defaults to the positive world Y direction
    // - pitch > 0 means the camera is looking downward
    //
    // To match the image coordinate (v downward), construct a commonly used engineering mapping:
    //
    // Camera ray rc = [x, y, 1]
    // First map to the "unpitched" world direction:
    //   x -> Xw
    //   y -> -Zw
    //   z -> Yw
    //
    // Then rotate around the world X axis by pitch
    //
    inline Vec3 cameraRayToWorldRay(const Vec3& rc, double pitch)
    {
        // World direction when unpitched
        // Camera right -> World right
        // Camera down -> World negative up
        // Camera forward -> World forward
        const double X0 = rc.x;
        const double Y0 = rc.z;
        const double Z0 = -rc.y;

        const double c = std::cos(pitch);
        const double s = std::sin(pitch);

        // Rotate around the X axis
        Vec3 rw;
        rw.x = X0;
        rw.y = c * Y0 - s * Z0;
        rw.z = s * Y0 + c * Z0;

        return rw;
    }

    // =========================
    // Pixel point -> Ground world coordinate
    // =========================
    //
    // Input pixel point (u, v), calculate its corresponding world point (X, Y) on the ground Z=0
    //
    // Note:
    // 1. If this ray points to the sky or is parallel to the ground, it is invalid
    // 2. fx, fy are in pixel units
    // 3. The unit of H determines the unit of the output world coordinates
    //
    inline GroundPoint imagePixelToGround(
        double u,
        double v,
        const CameraParam& cam)
    {
        // 1) Pixel coordinates -> Camera normalized coordinates
        Vec3 rc;
        rc.x = (u - cam.cx) / cam.fx;
        rc.y = (v - cam.cy) / cam.fy;
        rc.z = 1.0;

        // 2) Camera ray -> World ray
        Vec3 rw = cameraRayToWorldRay(rc, cam.pitch);

        // 3) Camera center position in world coordinates
        // Cw = (0, 0, H)
        // Ray equation: P(t) = Cw + t * rw
        //
        // Intersection with ground Zw = 0:
        // H + t * rw.z = 0  =>  t = -H / rw.z
        //
        GroundPoint gp{};
        gp.valid = false;

        // The ray is not pointing to the ground, or is almost parallel to the ground
        if (std::abs(rw.z) < 1e-12)
            return gp;

        const double t = -cam.H / rw.z;

        // Only accept "forward" intersections
        if (t <= 0.0)
            return gp;

        gp.X = t * rw.x;
        gp.Y = t * rw.y;
        gp.valid = true;
        return gp;
    }

    // =========================
    // World coordinate -> Bird's-eye view pixel
    // =========================
    //
    // Map the ground point (X, Y) to the output bird's-eye view pixel (bx, by)
    //
    // Output image convention:
    // - Left is minX, right is maxX
    // - Top is maxY (farther away)
    // - Bottom is minY (closer)
    //
    inline bool groundToBirdPixel(
        double X, double Y,
        const IPMParam& ipmParam,
        double& bx, double& by)
    {
        if (X < ipmParam.minX || X > ipmParam.maxX ||
            Y < ipmParam.minY || Y > ipmParam.maxY)
        {
            return false;
        }

        const double xRatio =
            (X - ipmParam.minX) / (ipmParam.maxX - ipmParam.minX);

        const double yRatio =
            (Y - ipmParam.minY) / (ipmParam.maxY - ipmParam.minY);

        // X from left to right
        bx = xRatio * (ipmParam.outWidth - 1);

        // We want "farther away at the top of the image"
        by = (1.0 - yRatio) * (ipmParam.outHeight - 1);

        return true;
    }

    // =========================
    // Bilinear sampling (grayscale)
    // =========================
    inline uint8_t bilinearSampleGray(
        const uint8_t* src,
        int width,
        int height,
        int stride,
        double u,
        double v)
    {
        if (u < 0.0 || v < 0.0 || u > width - 1.0 || v > height - 1.0)
            return 0;

        const int x0 = static_cast<int>(std::floor(u));
        const int y0 = static_cast<int>(std::floor(v));
        const int x1 = std::min(x0 + 1, width - 1);
        const int y1 = std::min(y0 + 1, height - 1);

        const double dx = u - x0;
        const double dy = v - y0;

        const double p00 = src[y0 * stride + x0];
        const double p10 = src[y0 * stride + x1];
        const double p01 = src[y1 * stride + x0];
        const double p11 = src[y1 * stride + x1];

        const double v0 = p00 * (1.0 - dx) + p10 * dx;
        const double v1 = p01 * (1.0 - dx) + p11 * dx;
        const double val = v0 * (1.0 - dy) + v1 * dy;

        return clampToByte(val);
    }

    // =========================
    // Bilinear sampling (RGB three channels)
    // Each pixel is 3 bytes, RGBRGB...
    // =========================
    inline void bilinearSampleRGB(
        const uint8_t* src,
        int width,
        int height,
        int stride,
        double u,
        double v,
        uint8_t outRGB[3])
    {
        if (u < 0.0 || v < 0.0 || u > width - 1.0 || v > height - 1.0)
        {
            outRGB[0] = outRGB[1] = outRGB[2] = 0;
            return;
        }

        const int x0 = static_cast<int>(std::floor(u));
        const int y0 = static_cast<int>(std::floor(v));
        const int x1 = std::min(x0 + 1, width - 1);
        const int y1 = std::min(y0 + 1, height - 1);

        const double dx = u - x0;
        const double dy = v - y0;

        const uint8_t* p00 = src + y0 * stride + x0 * 3;
        const uint8_t* p10 = src + y0 * stride + x1 * 3;
        const uint8_t* p01 = src + y1 * stride + x0 * 3;
        const uint8_t* p11 = src + y1 * stride + x1 * 3;

        for (int c = 0; c < 3; ++c)
        {
            const double v0 = p00[c] * (1.0 - dx) + p10[c] * dx;
            const double v1 = p01[c] * (1.0 - dx) + p11[c] * dx;
            const double val = v0 * (1.0 - dy) + v1 * dy;
            outRGB[c] = clampToByte(val);
        }
    }

    // =========================
    // Bird's-eye view pixel -> World coordinate
    // =========================
    //
    // This is the key to "inverse mapping":
    // For each pixel of the output bird's-eye view, first find its point on the world ground,
    // then back-calculate its position in the original image, and finally sample from the original image.
    //
    inline void birdPixelToGround(
        double bx,
        double by,
        const IPMParam& ipmParam,
        double& X,
        double& Y)
    {
        const double xRatio = bx / (ipmParam.outWidth - 1);
        const double yRatio = 1.0 - by / (ipmParam.outHeight - 1);

        X = ipmParam.minX + xRatio * (ipmParam.maxX - ipmParam.minX);
        Y = ipmParam.minY + yRatio * (ipmParam.maxY - ipmParam.minY);
    }

    // =========================
    // World ground point -> Original image pixel
    // =========================
    //
    // Given the world point (X, Y, 0), back-project it to the input image for inverse mapping sampling.
    //
    inline bool groundToImagePixel(
        double X,
        double Y,
        const CameraParam& cam,
        double& u,
        double& v)
    {
        // World point Pw = (X, Y, 0)
        // Camera center Cw = (0, 0, H)
        // World direction vector d_w = Pw - Cw = (X, Y, -H)
        const double dwx = X;
        const double dwy = Y;
        const double dwz = -cam.H;

        // Need to convert the world direction back to the camera direction
        // In cameraRayToWorldRay, we used: Rw = Rx(pitch) * base
        // Therefore, here we do the inverse rotation: Rx(-pitch)
        const double c = std::cos(cam.pitch);
        const double s = std::sin(cam.pitch);

        // First, inverse rotate to the unpitched state
        const double X0 = dwx;
        const double Y0 = c * dwy + s * dwz;
        const double Z0 = -s * dwy + c * dwz;

        // Then map back to camera coordinates
        // base: [X0, Y0, Z0] = [xc, zc, -yc]
        const double xc = X0;
        const double yc = -Z0;
        const double zc = Y0;

        // Behind the camera, invalid
        if (zc <= 1e-12)
            return false;

        u = cam.fx * (xc / zc) + cam.cx;
        v = cam.fy * (yc / zc) + cam.cy;
        return true;
    }

    // =========================
    // Grayscale IPM
    // =========================
    //
    // src: input grayscale image
    // dst: output grayscale image, must be allocated externally with outHeight * dstStride bytes
    //
    inline void warpIPMGray(
        const uint8_t* src,
        int srcWidth,
        int srcHeight,
        int srcStride,
        uint8_t* dst,
        int dstStride,
        const CameraParam& cam,
        const IPMParam& ipmParam)
    {
        for (int by = 0; by < ipmParam.outHeight; ++by)
        {
            uint8_t* dstRow = dst + by * dstStride;

            for (int bx = 0; bx < ipmParam.outWidth; ++bx)
            {
                // 1) Output bird's-eye view pixel -> World ground point
                double X, Y;
                birdPixelToGround(static_cast<double>(bx),
                                  static_cast<double>(by),
                                  ipmParam, X, Y);

                // 2) World ground point -> Original image pixel
                double u, v;
                if (!groundToImagePixel(X, Y, cam, u, v))
                {
                    dstRow[bx] = 0;
                    continue;
                }

                // 3) Bilinear sampling
                dstRow[bx] = bilinearSampleGray(src, srcWidth, srcHeight, srcStride, u, v);
            }
        }
    }

    // =========================
    // RGB IPM
    // =========================
    //
    // src: input RGB image, arranged as RGBRGB...
    // dst: output RGB image, arranged as RGBRGB...
    //
    inline void warpIPMRGB(
        const uint8_t* src,
        int srcWidth,
        int srcHeight,
        int srcStride,
        uint8_t* dst,
        int dstStride,
        const CameraParam& cam,
        const IPMParam& ipmParam)
    {
        for (int by = 0; by < ipmParam.outHeight; ++by)
        {
            uint8_t* dstRow = dst + by * dstStride;

            for (int bx = 0; bx < ipmParam.outWidth; ++bx)
            {
                double X, Y;
                birdPixelToGround(static_cast<double>(bx),
                                  static_cast<double>(by),
                                  ipmParam, X, Y);

                double u, v;
                if (!groundToImagePixel(X, Y, cam, u, v))
                {
                    uint8_t* p = dstRow + bx * 3;
                    p[0] = p[1] = p[2] = 0;
                    continue;
                }

                uint8_t rgb[3];
                bilinearSampleRGB(src, srcWidth, srcHeight, srcStride, u, v, rgb);

                uint8_t* p = dstRow + bx * 3;
                p[0] = rgb[0];
                p[1] = rgb[1];
                p[2] = rgb[2];
            }
        }
    }

}
